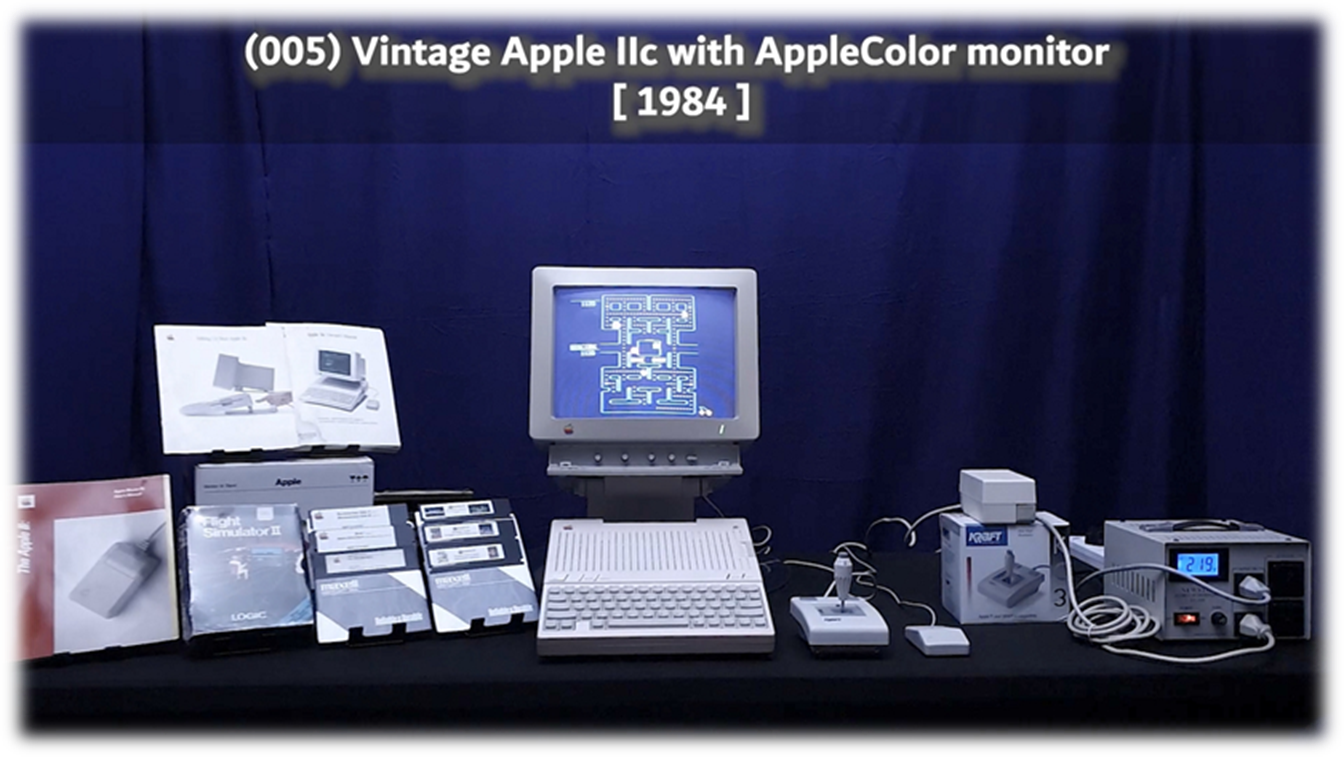

(005) Vintage Apple IIc with AppleColor monitor
[ 1984 ]



Specification:

CPU

·       MOS Technology 65C02 @ 1 MHz

·       MMU and IOU co-processor

RAM

128 KB , 16 KB (ROM)

STORAGE

DRIVES

Built-in 5.25'' FDD floppy disk drive

DISPLAY

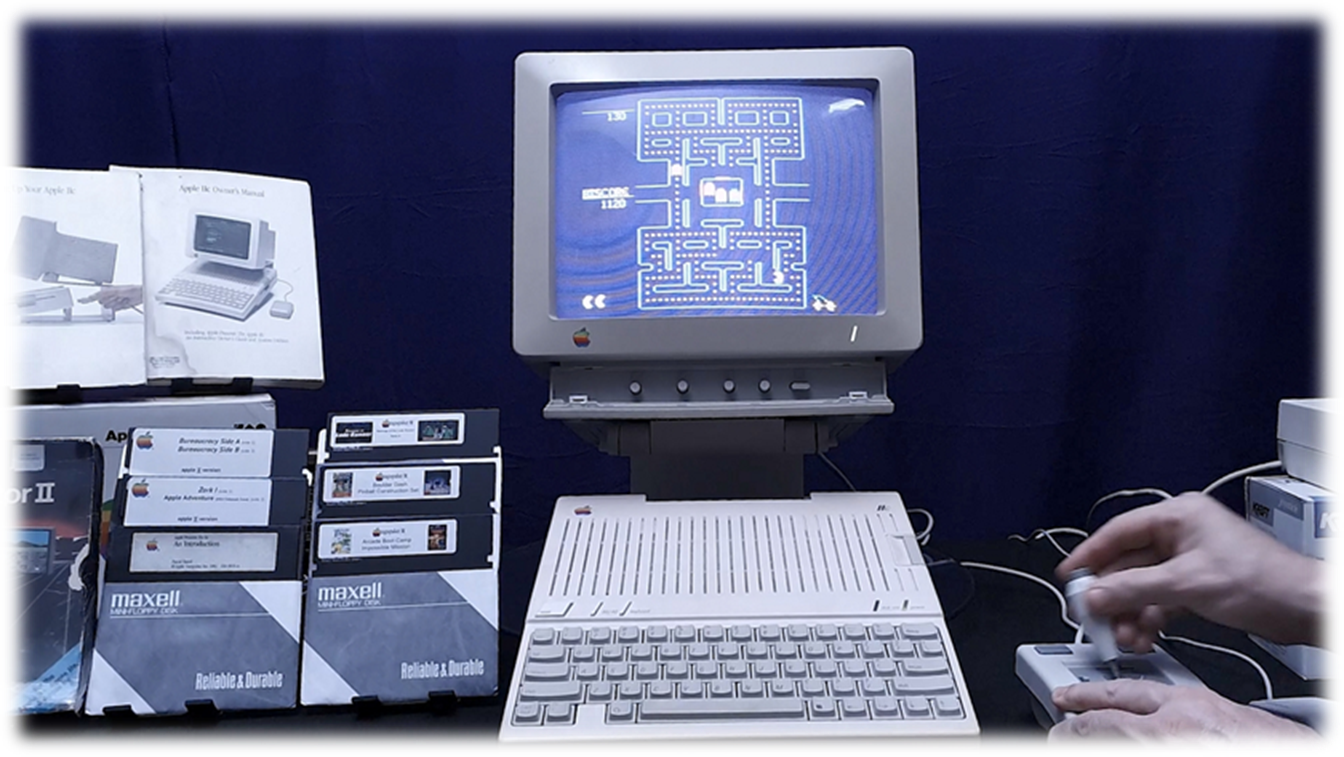

·       Original AppleColor Composite Monitor A2M6020 (13” 1989)
   with original apple IIc metal monitor stand A2M4021

·       Graphics: 280 x 192 pixels x 16 color

·       Text: 40-80 x 24 characters

OS

·       Built-in: AppleSoft BASIC

KEYBOARD

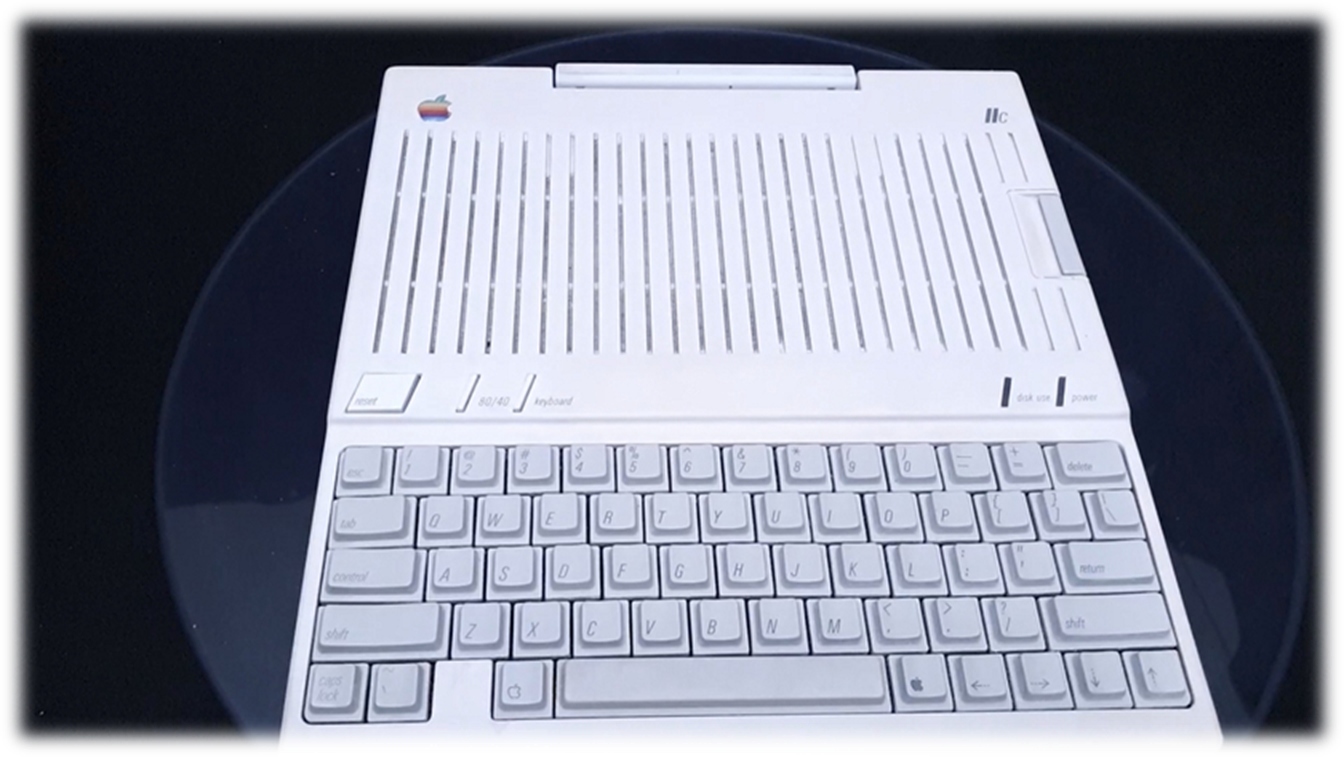

Original Built-in Apple IIc full-stroke keyboard (62 keys with arrow keys)

SOUND

AppleTalk Serial Modem Port

Network

I/O PORTS

·       Composite Monitor, RGB video port

·       Joystick/Mouse port

·       Apple II external floppy disk connecter

·       Serial RS232c port, Printer port

EXPANSION PERIPHERALS

·       Apple IIc enhanced ROM v4.x

ACCESSORIES & DOCUMENTS

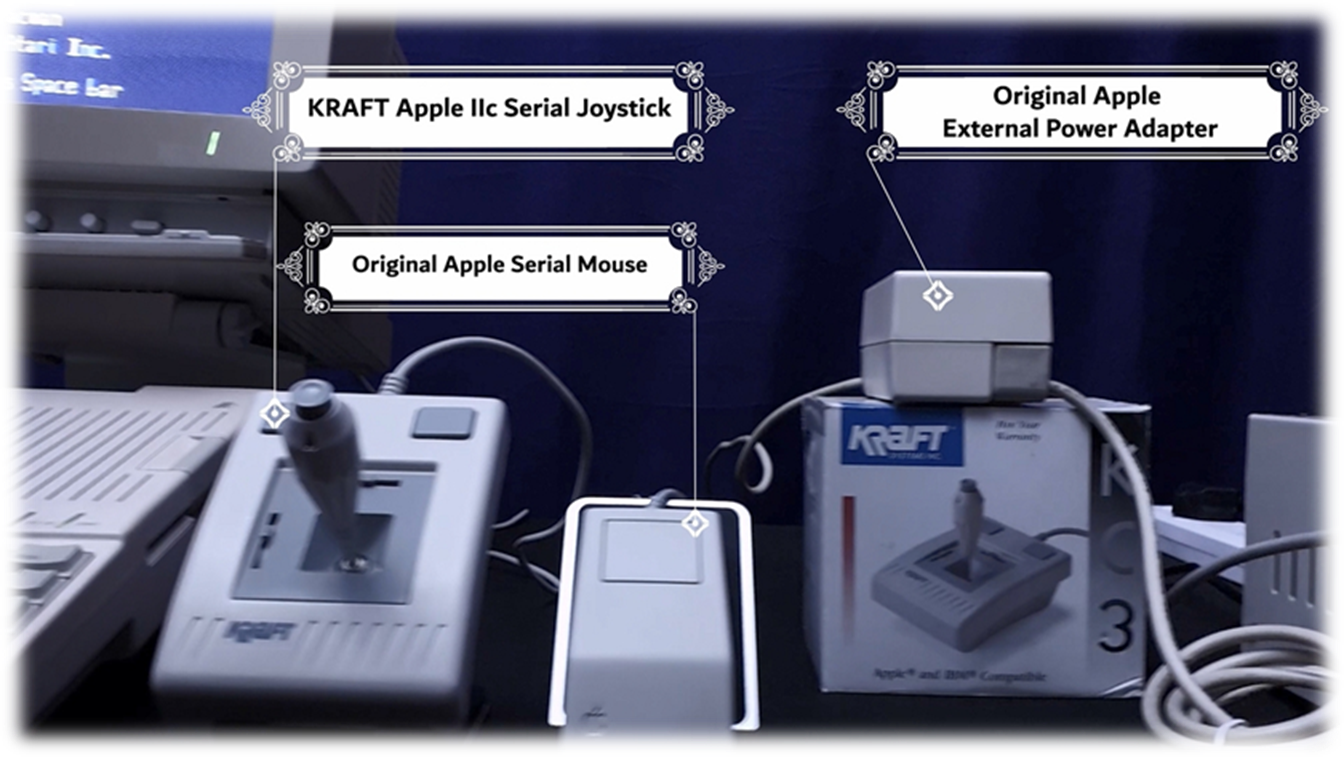

·       Apple IIc Compatible Joystick (KRAFT Systems)

·       Apple Original Mouse

·       5.25” bootable games floppy disks (10 disks)

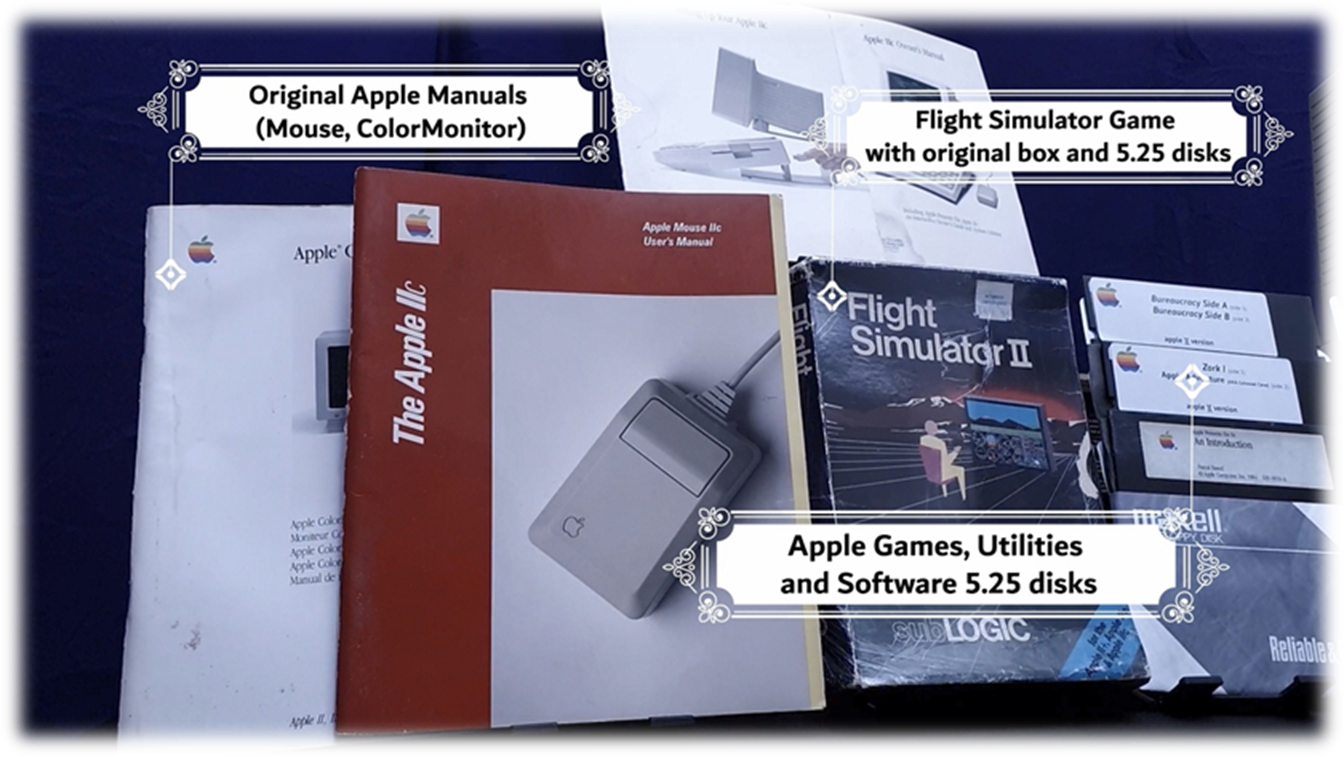

·       Original Manuals Bundle:

·       Apple IIc Owner’s Manual

·       Setting Up Your Apple IIc

·       Apple Mouse IIc User’s Manual

·       Apple ColorMonitor Installation Manual

POWER SUPPLY

·       Computer: 120V Only (External Power Adapter)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

·       Monitor: 120V Only (stand-alone cable)
Plug Type: TYPE A, USA, 2 Thin Flat Pins

·       Power Transformer: 500VA Power Transformer included (120V <---> 240V)
